ESSENTIAL DETAILS
Manufacturer | CFSensor |
Product Category | Pressure Sensor |
Series | XGZP6812D |
Model Number | As Order Guide |
Pressure Range | 0kPa~100kPa…2500kPa |
Pressure Type | Absolute |
Power Supply | 2.5~5.5 |
Output Type | I2C interface |
Output | 24 bits |
Accuracy | ±2.5%(customizable) |
Measured Media | Air or Non-corrosive Gas |
Temp. Compensated | 0~60°C |
Operating Temp | -30~120°C |
Package | Tape&Reel |
APPLICATIONS
- Air pump, Inflator pump, White goods(e.g.washer), Heating, Ventilation, Air conditioning, Fire extinguisher, Filter detection, Industrial controls.
- Medical gas control system, Hospital beds, Massage device, Oil pressure, Engine control/manifold absolute pressure (MAP), Green gas( LPG and CNG) control and measurement, Tire pressure meter.
- Weather station and weather reporting device barometers, Altimeter, Drone, Sport and leisure equipment, Vacuum measurement, pneumatic device, GPS, Navigation.
INTRODUCTION
XGZP6812D is a perfect silicon pressure sensor offering a ratiometric I2C interface for reading pressure over the specified full scale pressure span.
XGZP6812D pressure sensor incorporates a silicon piezoresistive pressure sensor die and an interior Application Specific Integrated Circuit(ASIC) in a small COB package.
XGZP6812D is fully calibrated and temperature compensated for offset, sensitivity, temperature and non-linearity, so XGZP6812D pressure sensor satisfy the prefect repeatability, linearity, stability and sensibility, which can be applied directly in home appliances, consumer electronic, industry, automotive and other pneumatic devices etc.
XGZP6812D is for high volume application at an affordable cost but perfect performance. Customized calibrations (e.g.pressure range etc.) are available.

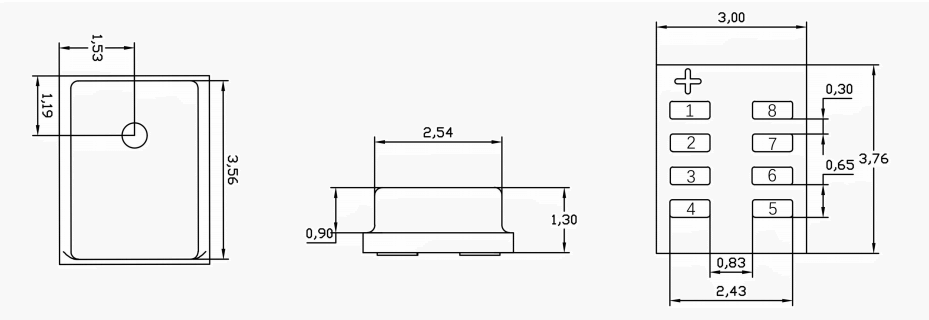

DIMENSION (Unit:mm)

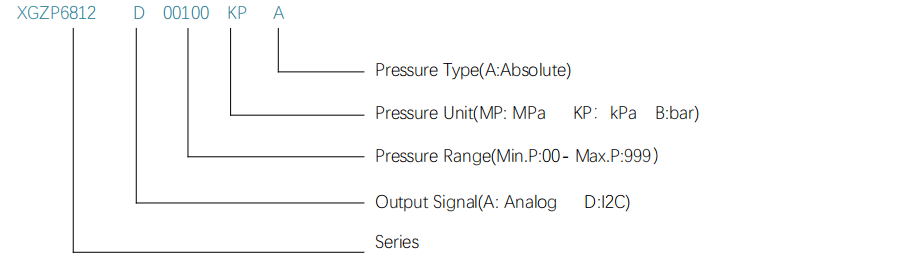

ORDER GUIDE (100kPa=0.1MPa=1bar≈14.5PSI)
Note: Custom requirement or parameter, please consult CFSensor and comment custom code herewith Part number.
PRESSURE RANGE EXAMPLE
Please consult CFSensor whether required pressure range is under normal production before place order.
Notes:
1. Unit conversion: 1000hPa=1000mbar≈750mmHg≈100kPa≈14.5PSI≈10mH2O≈1bar=0.1MPa;
2. Available for more custom pressure range e.g. 15~115kPa,75~325kPa etc,.
Datasheet: XGZP6812D Pressure Sensor V1.6.PDF
