XGZP193 Pressure Sensor (MPXV2010GP, MPXV2102GP, MPXV2202GP Alternative Parts)

  • Range: 0kPaG~10kPaG/50kPaG/100kPaG/200kPaG
  • MEMS technology, Solid-state reliability
  • Perfect replacement, Plug and Play
  • Calibrated mV analog output
  • Working temp.: -30℃~+125℃(-22℉~+257℉)
  • Gauge pressure type
  • Easy to use and embed in OEM equipment


MPXV2010GP vs MPXV2102GP vs MPXV2202GP vs XGZP193 Comparison

Product CategoryPressure SensorPressure SensorPressure SensorPressure Sensor
Model NumberAs Order GuideMPXV2010GPMPXV2102GPMPXV2202GP
Pressure Range0kPaG~10kPaG/50kPaG/100kPaG/200kPaG0KPa~10KPa0KPa~100KPa0KPa~200KPa
Pressure TypeGaugeGaugeGaugeGauge
Power Supply≤15mV or ≤3mA1V ~ 16V1V ~ 16V1V ~ 16V
Output TypeNon-amplified AnalogAnalogAnalogAnalog
OutputmV(millivolt)0 mV ~ 25 mV (10V)0 mV ~ 40 mV (10V)0 mV ~ 40 mV (10V)
Bridge Resistance5kΩ
Measured MediaAir or Non-corrosive Gas
Temp. CompensatedYesYesYesYes
Operating Temp-30~120°C-40°C~125°C-40°C~125°C-40°C~125°C
PackagePlastic TubeTrayTrayTray



  • For medical and healthy equipment, e.g. Patient Monitoring, Infusion and Syringe Pumps, Anesthesia machines, Respirators and Ventilators, NPWT, DVT, Catheter, COPD Treatment, Kidney dialysis, Cupping&Cosmetology, Hospital beds, Massage device etc.
  • For white goods and consumer electronics, e.g. Refrigerator, Printer, Humidifier, Washer/Dryer, Coffee machine, Dust collector or Cleaner, Robotic ,Sport equipment etc.
  • For more fields, e.g. Digital display meter, Air pump, Process control, Pressure switching, HVAC and pneumatic device, Air flow monitor, Automation, Automotive electronic,Intelligent fire control systemetc.



XGZP193 is a surface mounting pressure sensor based on CFSensor silicon-glass based piezoresistive pressure sensor die. The sensor die is bonded on a substrate with a plastic cap and packaged in a 6-pin SIP housing. The built-in circuit calibrates and compensates the sensor’s zero output, full-scale output, temperature drift and other parameters, and generates a high-precision standard voltage output signal proportional to the supply voltage.

The small size and high reliability of integration make this sensor a simple and economical choice for high volume application in a variety of industries. With standard SMD PIN, XGZP193 is easy for users to install by board mounting.

The XGZP193 pressure sensor is intended for use with non-corrosive gas or air. It is highly prohibited to choke the side of pressure diaphragm during actual application. Please consult us if a pressure medium other then air is to be used.

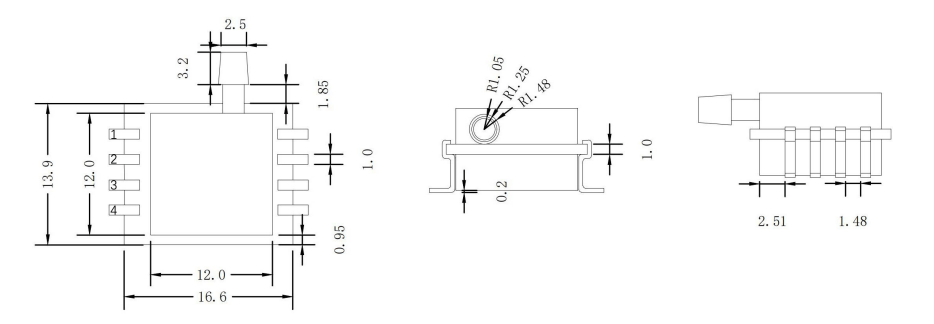

xgzp193 pressure sensor dimension


ORDER GUIDE (100kPa=0.1MPa=1bar≈14.5PSI)

mpxv2010gp, mpxv2102gp, mpxv2202gp alternative parts xgzp193 pressure sensor order guide


Datasheet: XGZP193 Pressure Sensor-V1.3.PDF



Using these sensors products may malfunction due to external interference and surges, therefore, please confirm the performance and quality in actual use. Just in case, please make a safety design on the device (fuse, circuit breaker, such as the installation of protection circuits, multiple devices, etc.), so it would not harm life, body, property, etc even a malfunction occurs. To prevent injuries and accidents, please be sure to observe the following items:

  • The driving current and voltage should be used below the rated value.
  • Please follow the terminal connection diagram for wiring. Especially for the reverse connection of the power supply, it will cause an accident due to circuit damage such as heat, smoke, fire, etc.
  • In order to ensure safety, especially for important uses, please be sure to consider double safety circuit configuration.
  • Do not apply pressure above the maximum applied pressure. In addition, please be careful not to mix foreign matter into the pressure medium. Otherwise, the sensor will be discarded, or the media will blew out and cause an accident.
  • Be careful when fixing the product and connecting the pressure inlet. Otherwise, accidents may occur due to sensor scattering and the blowing out of the media.
  • If the sensor come with sharp PIN, please be careful not to hurt your body when using it.


The information in this sheet has been carefully reviewed and is believed to be accurate; however, no responsibility is assumed for inaccuracies. Furthermore, this information does not convey to the purchaser of such devices any license under the patent rights to the manufacturer. CFSensor reserves the right to make changes without further notice to any product herein.

CFSensor makes no warranty, representation or guarantee regarding the suitability of its product for any particular purpose, nor does CFSensor assume any liability arising out of the application or use of any product or circuit and specifically disclaims any and all liability, including without limitation consequential or incidental damages. Typical parameters can and do vary in different applications. All operating parameters must be validated for each customer application by customer’s technical experts. CFSensor does not convey any license under its patent rights nor the rights of others.
