Pressure Transmitter 4-20ma XGZP6103

  • 4~20mA output
  • Sealed Gage Pressure Type(0BAR~10BAR/16BAR/25BAR)
  • Ceramic Diaphragm Construction
  • Smart and Exquisite, High Stability
  • Advanced Anti-interference, High Insulation
  • Anti-overload&Shock&Vibration
  • Anti-waterhammer, Anti-leak, Corrosion-resistant
  • Easy-to-use, Low Cost


  • HVAC System
  • Hydraulic/Pneumatic
  • Refrigeration Systems
  • Pumps and Compressor
  • Industrial Process Control and Monitoring
  • Agriculture, Metallurgy, Hydrology, Energy etc,.



XGZP6103 pressure transmitter 4-20ma is high performance and low cost products. It is structured by Piezo-resistive OEM ceramic sensor as signal sensing element and the customized amplified circuit, assort with stainless steel housing and durable Aviation or Cable or Hirschmann connector.

XGZP6103 is integrally temperature compensated and linearity corrected that can meet the requirement of measure and control under complex environment. Through strict component making, semi-finished product and all-finished product testing and aging, the transmitter is stable and reliable,having excellent consistency, anti-interference, anti-overload and sensitivity.

XGZP6103 provide various output mode and pressure interface, the OEM service can meet extremely clients application requirement.

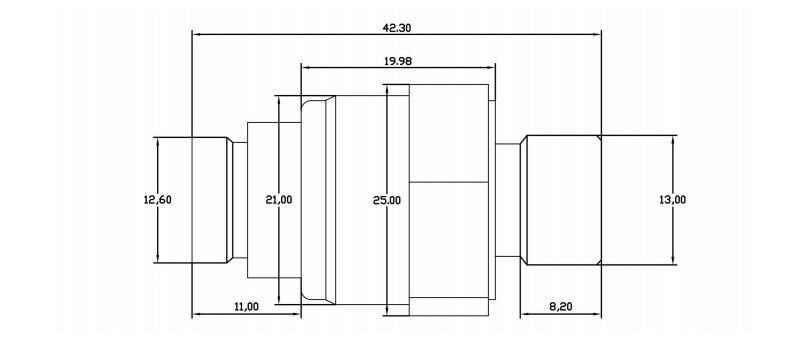

pressure transmitter 4-20ma 6103 dimension

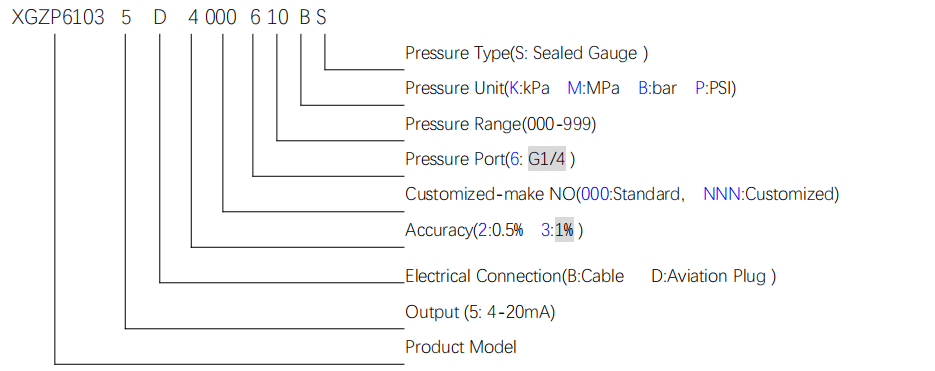

ORDER GUIDE (100kPa=0.1MPa=1bar≈14.5PSI)

pressure transmitter 4-20ma 6103 order guide

Note: Custom requirement, please comment here with Part number(e.g pressure port etc,.) or contact CFSensor.



Please consult CFSensor whether required pressure range is under normal production before place order.

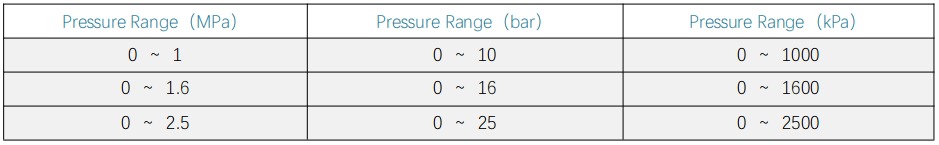

pressure transmitter 4-20ma 6103 pressure range example


Datasheet: XGZP6103 Pressure Transmitter V1.1(Aviation Plug).PDF



Using these sensors products may malfunction due to external interference and surges, therefore, please confirm the performance and quality in actual use. Just in case, please make a safety design on the device (fuse, circuit breaker, such as the installation of protection circuits, multiple devices, etc.), so it would not harm life, body, property, etc even a malfunction occurs. To prevent injuries and accidents, please be sure to observe the following items:

  • The driving current and voltage should be used below the rated value.
  • Please follow the terminal connection diagram for wiring. Especially for the reverse connection of the power supply, it will cause an accident due to circuit damage such as heat, smoke, fire, etc.
  • In order to ensure safety, especially for important uses, please be sure to consider double safety circuit configuration.
  • Do not apply pressure above the maximum applied pressure. In addition, please be careful not to mix foreign matter into the pressure medium. Otherwise, the sensor will be discarded, or the media will blew out and cause an accident.
  • Be careful when fixing the product and connecting the pressure inlet. Otherwise, accidents may occur due to sensor scattering and the blowing out of the media.
  • If the sensor come with sharp PIN, please be careful not to hurt your body when using it.


The information in this sheet has been carefully reviewed and is believed to be accurate; however, no responsibility is assumed for inaccuracies. Furthermore, this information does not convey to the purchaser of such devices any license under the patent rights to the manufacturer. CFSensor reserves the right to make changes without further notice to any product herein.

CFSensor makes no warranty, representation or guarantee regarding the suitability of its product for any particular purpose, nor does CFSensor assume any liability arising out of the application or use of any product or circuit and specifically disclaims any and all liability, including without limitation consequential or incidental damages. Typical parameters can and do vary in different applications. All operating parameters must be validated for each customer application by customer’s technical experts. CFSensor does not convey any license under its patent rights nor the rights of others.
