Gas Air Flow Sensor XGZF4000

  • Wide flow measurement from 5 to 300SLM
  • High sensitivity
  • High accuracy, high resolution
  • Reliable quality, stable performance, low cost
  • The latest generation of MEMS chip technology
  • Linear output (Analog or Digital)
  • Fast response time
  • Resistant to condensated water
  • Affordable cost


  • Portbale Ventilator, Household Oxygen Generator
  • CPAP Device
  • Anesthesia for childbirth
  • Critical care equipment
  • HVAC
  • Air purifier
  • Environmental climate monitoring
  • Fuel cell control and
  • More applications for air flow control and measurement



The gas air flow sensor XGZF4000 series measures the flow of gases in flow channels according to the thermodynamic principle and is capable of measuring non-corrosive gases such as air, oxygen and nitrogen with high accuracy. The built-in MEMS thermal sensor chip and high performance CMOS microprocessor, combined with a unique calibration program, can output real-time accurate flow signals.



gas air flow sensor xgzf4000 dimension

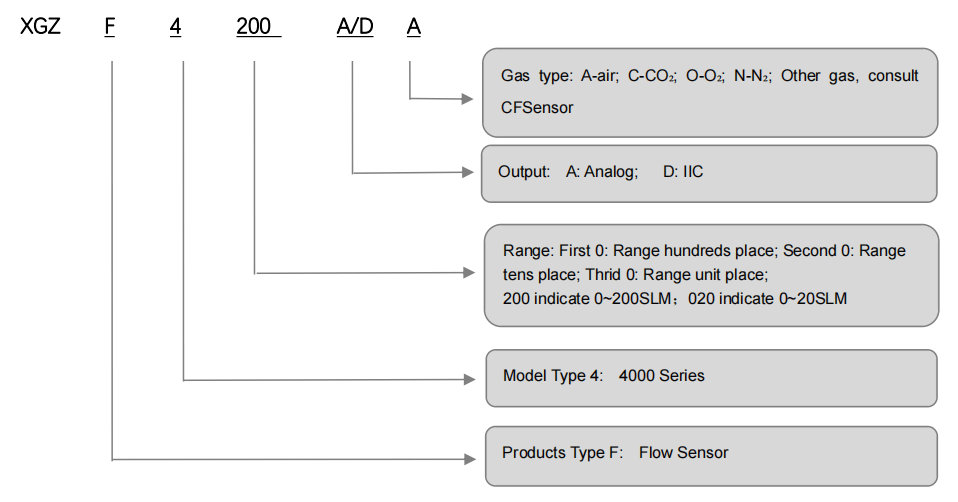

gas air flow sensor xgzf4000 order guide



Test Condition:VIN=12±0.01VDC,Ta=25℃; RH: 40%<RH<60% Max. Working Temp. Range: -25℃ to +85℃

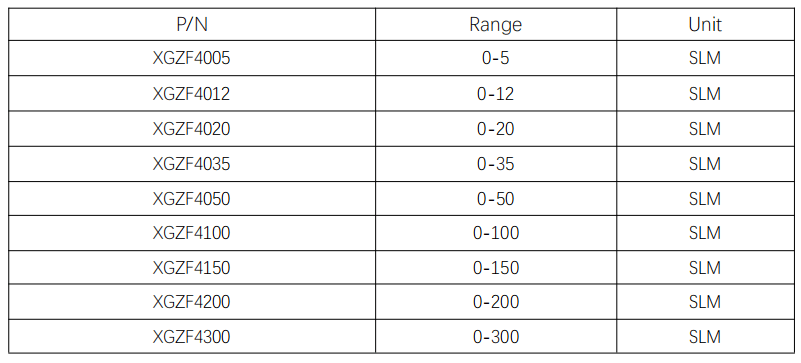

gas air flow sensor xgzf4000 range example


Datasheet: XGZF4000 Air Flow Sensor-V2.2.PDF



Using these sensors products may malfunction due to external interference and surges, therefore, please confirm the performance and quality in actual use. Just in case, please make a safety design on the device (fuse, circuit breaker, such as the installation of protection circuits, multiple devices, etc.), so it would not harm life, body, property, etc even a malfunction occurs. To prevent injuries and accidents, please be sure to observe the following items:

  • The driving current and voltage should be used below the rated value.
  • Please follow the terminal connection diagram for wiring. Especially for the reverse connection of the power supply, it will cause an accident due to circuit damage such as heat, smoke, fire, etc.
  • In order to ensure safety, especially for important uses, please be sure to consider double safety circuit configuration.
  • Do not apply pressure above the maximum applied pressure. In addition, please be careful not to mix foreign matter into the pressure medium. Otherwise, the sensor will be discarded, or the media will blew out and cause an accident.
  • Be careful when fixing the product and connecting the pressure inlet. Otherwise, accidents may occur due to sensor scattering and the blowing out of the media.
  • If the sensor come with sharp PIN, please be careful not to hurt your body when using it.


The information in this sheet has been carefully reviewed and is believed to be accurate; however, no responsibility is assumed for inaccuracies. Furthermore, this information does not convey to the purchaser of such devices any license under the patent rights to the manufacturer. CFSensor reserves the right to make changes without further notice to any product herein.

CFSensor makes no warranty, representation or guarantee regarding the suitability of its product for any particular purpose, nor does CFSensor assume any liability arising out of the application or use of any product or circuit and specifically disclaims any and all liability, including without limitation consequential or incidental damages. Typical parameters can and do vary in different applications. All operating parameters must be validated for each customer application by customer’s technical experts. CFSensor does not convey any license under its patent rights nor the rights of others.
